Plunger Lubricant Application

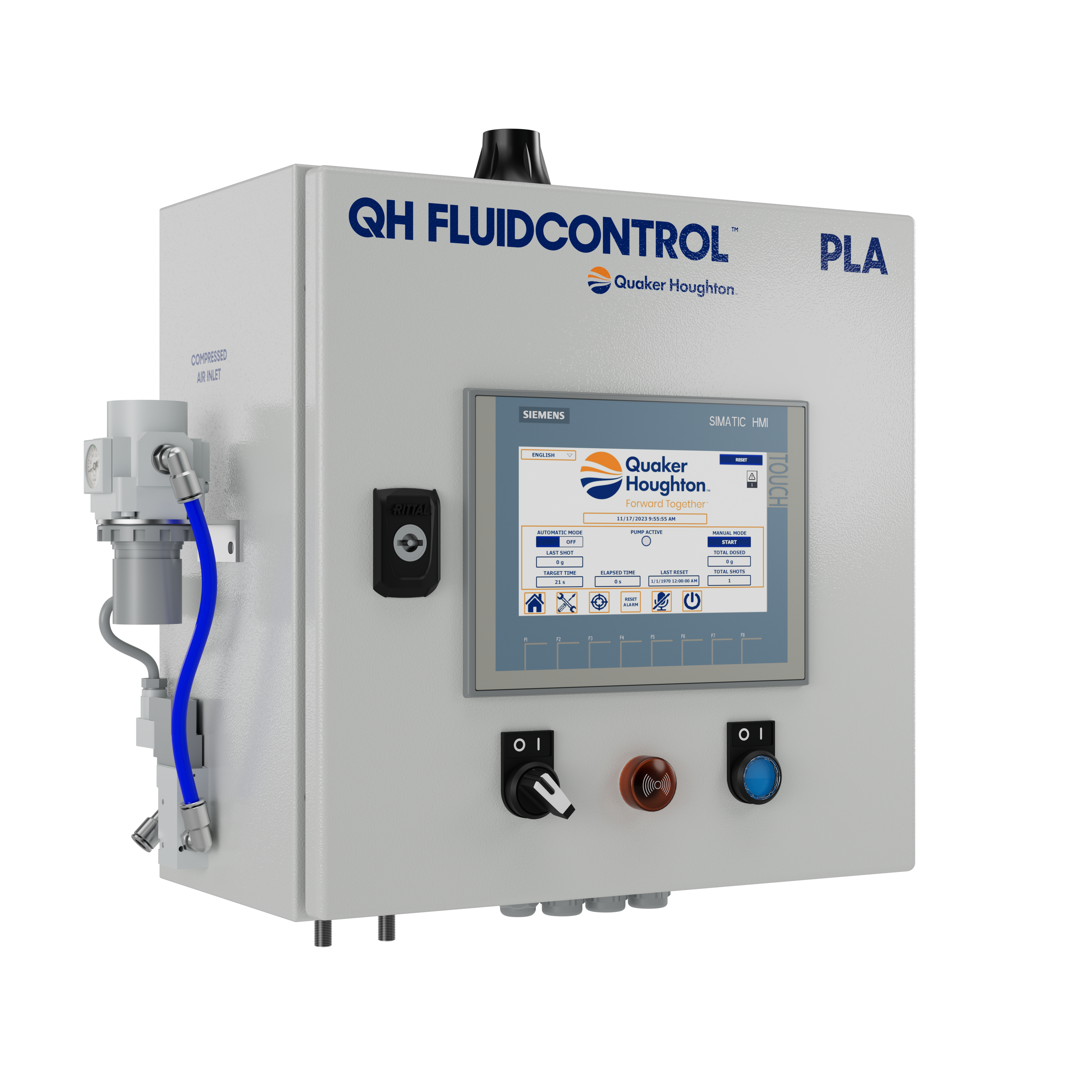

QH FLUIDCONTROL™ PLA

To provide customers with the complete die casting solution, we have developed the QH FLUIDCONTROL™ PLA plunger lubricant applicator equipment range.

The QH FLUIDCONTROL™ PLA is an advanced plunger lubricant applicator, with PLC control of lubricant delivery, incorporating a touchscreen HMI interface. Data is collected for each shot and accessible through reports and alerts in QH FLUIDTREND™, allowing you to optimize your fluids
and processes. Systems can deliver up to 10 litres per hour of plunger lubricant, in either drop or spray form, and can be used with a wide range of lubricant viscosities.

The system is compatible with Quaker Houghton water free V Series or water based W series lubricants. The lubricant application volume is controllable to an accuracy better than 0.5g per shot and the system be calibrated to give precise volume control for any given lubricant. For large plungers, greater than 100mm diameter, more than one application of lubricant per shot can be applied.

Properties:

PROPERTY TYPICAL VALUE UNIT
Power Supply 100 – 240 VAC
50 – 60 Hz
2 Max. A
Lubricant Type Water-based and neat
Lubricant Viscocity 100 – 5500 cSt
Short Accuracy ±0.2 g
Max. Flowrate* 10 lph
2.64 gph
Connections (BSP) Inlet and Outlet 1/8/td> inches
Weight 18 | 40 Kg | lbs
Dimensions 475 x 500 x 250 | 19 x 20 x 10 mm | inch
HMI Interface Yes
Data Capture and Display Yes
QH FLUIDTREND™ Connectivity and Technical Remote Support Yes via LAN/4G network connection
* The above properties are measured at zero back pressure on the outlet. Actual pressure and flow rates will be dependent on the die casting machine(s) that the unit is connected to.
QH FLUIDCONTROL PLA

QH FLUIDCONTROL™ PLA applicators should be used with the PLUNGER SLICK® series of high performance liquid lubricants.
